This document explains how to set up the printer and install the software, and includes information about the printer features and options.

NOTE:

Complete the hardware setup before installing the printer software.

Refer to the table below to learn which setup options are available for your printer model.

To verify your printer model, refer to the nameplate on the front panel of the printer.

SETUP OPTIONS BY PRINTER MODEL

Printer model

Setup options

dw

fdw

Wireless, Ethernet, or USB

fdn

Ethernet or USB
NOTE:

HP recommends using Ethernet or Wireless to set up the printer to allow access to cloud-based features and services and additional printing solutions.

NOTE:

Do NOT use a USB cable to set up the printer if you intend to connect the printer to the cloud. After initial setup, you can connect a USB cable, if needed, but if the printer has been onboarded to the cloud, it needs to remain connected to the Internet to take advantage of cloud services and features.

Set up the printer

Follow these steps to unpack and set up the printer.

NOTE:

If the printer hardware is already set up, go to Step 6: Complete printer setup to connect your printer and begin printing.

  1. Unpack the printer:

    1. Select a site to place the printer that meets the following specifications:

      • A sturdy work surface in a well-ventilated and dust-free area, and away from direct sunlight

      • Temperature range: 15° - 27° C59° to 80.6° F

      • Humidity range: 30% - 70%

    2. Allow sufficient space around the printer to open all doors and trays.

      NOTE:

      The printer weighs 12.9 kg28.4 lb.

      SPACE REQUIREMENTS

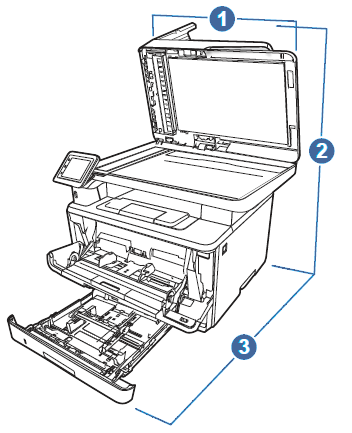

      DIMENSIONS (PRINTER FULLY OPENED)

      Measurement

      Dimensions (Printer fully opened)

      1: Width

      453 mm 17.8 in

      2: Height

      577 mm 22.7 in

      3: Depth

      839 mm 33 in

    3. Take the printer out of the box and remove all tape and packing material.

      NOTE:

      HP recommends recycling the packaging materials.

  2. Load paper in Tray 2:

    The following information describes how to load paper into Tray 2.

    NOTE:

    This tray holds up to 250 sheets of 75 grams per square meter20 lb paper.

    1. Open Tray 2.

      OPEN TRAY 2

    2. Adjust the paper-length and paper-width guides by squeezing the adjustment latches and sliding the guides to the size of paper being used.

      NOTE:

      If loading legal paper, squeeze the latch behind the front of the tray and pull forward. Tray 2 will extend from the rear of the printer approximately 51 mm2 inches.

      ADJUST THE PAPER GUIDES

    3. Load paper into the tray.

      NOTE:

      To prevent jams, do not overfill the tray. Make sure the top of the stack is below the tray-full indicator.

      LOAD PAPER

    4. Verify that the paper guides lightly touch the stack or paper, but do not bend it.

      PAPER GUIDES LIGHTLY TOUCH THE PAPER

    5. Close the tray.

      CLOSE THE TRAY

  3. Connect the power cable and turn on the printer:

    1. Connect the power cable between the printer and a grounded AC outlet.

      NOTE:

      To prevent damage to the printer, use only the power cable that is provided with the printer.

      CONNECT THE POWER CABLE

    2. Press the Power button to turn on the printer.

      PRESS THE POWER BUTTON

  4. Choose a connection method:

    Choose one of the following options to connect your printer:

    • For an Ethernet setup, connect an Ethernet cable now. Connect the Ethernet cable to your network port and the other end to the Ethernet port on the rear of the printer.

      After connecting the Ethernet cable, continue to the next step.

      CONNECT AN ETHERNET CABLE

    • For a wireless setup, do NOT connect any cables. Continue to the next step.

      WIRELESS SETUP, NO CABLE

    • For a USB setup, continue to the next step. Wait until prompted by the software to connect the USB cable.

      NOTE:

      If you choose this option, you will NOT have access to cloud features and services.

  5. Set up the control panel:

    To navigate the touchscreen control panel, use touch, swipe, and scroll gestures.

    1. When the printer is powered on, touch the desired language from the list, touch Confirm (to confirm the language), and then touch the desired country/region.

      The printer will check for an Ethernet connection.

      • If you did NOT connect an Ethernet cable, continue to Step 6 and follow the instructions to select a connection method and connect your printer to the Internet.

      • If you already connected an Ethernet cable, the Ethernet Summary screen will display on the control panel. Touch OK. The printer will check for firmware updates and then retrieve a pairing code. When the pairing code displays on the control panel screen, make note of it, and then skip to Step 7 and follow the instructions to pair your printer with HP Smart Admin.

  6. Complete printer setup:

    1. When prompted to select a connection method, select the desired option (Wireless, Ethernet, Connect with Software, or Connect Later).

      NOTE:

      For quicker setup, HP recommends selecting Wireless or Ethernet.

      IMPORTANT:

      If you want to set up the printer with a USB cable, select the Connect Later option. This option is available for users who do not want access to cloud features and services.

    2. Once you have selected the connection method on the printer control panel, find the connection method in the table below and follow the instructions to complete the printer setup.

      INSTRUCTIONS FOR EACH CONNECTION METHOD

      Connection method

      Details

      Wireless

      NOTE:

      Select this option to connect the printer to the wireless network using the printer control panel.

      After selecting the Wireless option, the printer will search for wireless routers.

      1. When the list of wireless networks displays on the printer control panel, touch your network name from the list.

      2. Use the touch keypad to enter your wireless password and touch Done.

        When the printer has successfully connected to the network, a Connection Successful screen will display on the control panel and show the IP address for the printer.

      3. On the Connection Successful screen, touch OK, and then touch Continue. The printer will check for firmware updates and then retrieve a pairing code.

        The pairing code will display on the printer control panel.

      4. Make note of the pairing code as you will need it in the next step (Step 7).

        NOTE:

        The pairing code is only valid for two hours. If you do not enter the pairing code during HP Smart Setup (in Step 7) within two hours, a new pairing code will be automatically generated.

        If you do not wish to pair the printer, click Skip Pairing on the printer control panel, and disregard the remaining steps in this document as they only apply when pairing the printer.

        If you skip pairing, you will NOT have access to cloud-based features and services.

      5. Continue to Step 7 and follow the instructions to pair your printer with HP Smart Admin.

        NOTE:

        Pairing your printer with HP Smart Admin (Step 7) is optional. If you do NOT wish to pair the printer with HP Smart Admin, you can stop here.

        If you skip the step to pair with HP Smart Admin, you will be prompted to download the HP Smart print driver.

      Ethernet

      NOTE:

      Select this option if you want to connect your printer with an Ethernet cable and you did not already connect the Ethernet cable in a previous step.

      1. Connect an Ethernet cable: Connect one end of the Ethernet cable to your network port and the other end to the Ethernet port on the rear of the printer.

      2. When the Ethernet Summary screen displays on the printer control panel, touch OK. The printer will check for firmware updates and then retrieve a pairing code.

        The pairing code will display on the printer control panel.

      3. Make note of the pairing code as you will need it in the next step (Step 7).

        NOTE:

        The pairing code is only valid for two hours. If you do not enter the pairing code during HP Smart Setup (in Step 7) within two hours, a new pairing code will be automatically generated.

        If you do not wish to pair the printer, click Skip Pairing on the printer control panel, and disregard the remaining steps in this document as they only apply when pairing the printer.

        If you skip pairing, you will NOT have access to cloud-based features and services.

      4. Continue to Step 7 and follow the instructions to pair your printer with HP Smart Admin.

        NOTE:

        Pairing your printer with HP Smart Admin (Step 7) is optional. If you do NOT wish to pair the printer with HP Smart Admin, you can stop here.

        If you skip the step to pair with HP Smart Admin, you will be prompted to download the HP Smart print driver.

      Connect with Software

      NOTE:

      Select this option if you want to connect your printer to Wi-Fi using the software, rather than from the printer control panel.

      When you select this option, a message will display on the printer control panel with instructions to go to hpsmart.com/setup (in a Web browser on your computer) to install the HP Easy Start software and continue setup.

      NOTE:

      These steps cannot be performed on a mobile device.

      NOTE:

      If you do not want to install the printer software at this time, touch Connect Later, and then touch Skip Connecting. You will be prompted to set the date and time and then touch Continue.

      1. On your computer, open a Web browser and go to hpsmart.com/setup.

      2. On the "Set up a new printer" page, click Begin Setup, and then click Install HP Easy Start to download the software.

      3. After the software has downloaded, click the .exe file and follow the onscreen prompts to install HP Easy Start.

        HP Easy Start will search for wireless printers not yet associated to the network (printers with a wireless light flashing), or Ethernet-connected and wireless printers that are already connected to the network. The printers that are detected will display on the screen.

        • If multiple printers are detected, click the printer that you want to set up.

        • If the printer is not found, or not listed, follow the onscreen instructions to troubleshoot and resolve the issue.

          NOTE:

          If setting up the printer for Wi-Fi, make sure the PC is connected to the same Wi-Fi network. If setting up the printer for Ethernet, make sure the PC is connected to the same Ethernet network subnet.

      4. Follow the onscreen instructions in the HP Easy Start software to connect the printer to a network.

        NOTE:

        When connecting the printer to Wi-Fi using the software, your computer must be near the printer during setup.

        When connecting wirelessly, if you do not connect to the wireless network within two hours, you will be required to power cycle the printer.

        To confirm your proximity to the printer, a message will display in the software with instructions to select "Allow" on the printer control panel.

      5. On the printer control panel, touch Allow (next to the check mark).

        HP Easy Start will configure the printer and add it to the network. The Network Settings screen will display in the HP Easy Start software.

        NOTE:

        If proxy settings are required for your network, click Edit Proxy Settings in the software, enter the settings, and then click Apply.

      6. On the Network Settings screen, click Continue.

        If prompted to continue with a Firmware Update, click Yes.

      7. When the "Generate your pairing code" screen displays in the HP Easy Start software, click Generate Pairing Code.

        The pairing code will display on the printer control panel.

      8. Make note of the pairing code as you will need it in the next step (Step 7).

        NOTE:

        The pairing code is only valid for two hours. If you do not enter the pairing code during HP Smart Setup (in Step 7) within two hours, a new pairing code will be automatically generated.

        If you do not wish to pair the printer, click Skip Pairing on the printer control panel, and disregard the remaining steps in this document as they only apply when pairing the printer.

        If you skip pairing, you will NOT have access to cloud-based features and services.

      9. On the "Continue setup in HP Smart Admin" screen in the HP Easy Start software, click Open HP Smart Admin to open the hpsmart.com/connect page in your Web browser.

      10. Continue to Step 7 and follow the instructions to pair your printer with HP Smart Admin.

        NOTE:

        Pairing your printer with HP Smart Admin (Step 7) is optional. If you do NOT wish to pair the printer with HP Smart Admin, you can stop here.

        If you skip the step to pair with HP Smart Admin, you will be prompted to download the HP Smart print driver.

      Connect Later

      NOTE:

      Select this option if you want to connect the printer with a USB cable. If you select this option, you will NOT have access to cloud features and services.

      When you select this option, a message will display on the printer control panel to notify you that you will not be able to use all the available features that are delivered through a network connection.

      1. To continue with this option, touch Skip Connecting.

      2. When the "Set Date and Time" screen displays on the printer control panel, use touch and scroll gestures to set the date and time, and then touch Continue.

        The "Get HP Software" screen will display on the printer control panel with instructions to go to to complete setup.

      3. On the "Get HP Software" screen, touch Continue.

        The printer will proceed to a Ready state and the Home screen will display with the date, time, and menu icons.

      4. On your computer, open a Web browser and go to , and then click Install HP Smart.

        You will be redirected to the app store. Follow the onscreen prompts to download and install HP Smart.

        NOTE:

        You will be prompted to connect a USB cable during the software installation process.

        Once HP Smart is installed, the printer is configured to begin printing.

        Stop here. You do not need to complete any more steps in this document. The remaining steps apply only when the printer is connected to an Ethernet or wireless network.

  7. Pair your printer with HP Smart Admin (optional):

    IMPORTANT:

    If you connected your printer with a USB cable, disregard these steps. These steps apply only when the printer is connected to a network (via an Ethernet or a wireless connection).

    Pairing your printer with HP Smart Admin will give you access to cloud-based features and services and additional printing solutions.

    NOTE:

    Pairing with HP Smart Admin is optional. If you are not interested in accessing the cloud-based features and services, skip these steps.

    If you choose to skip these steps, you will be prompted to download the HP Smart print driver.

    1. On your computer, open a Web browser and go to hpsmart.com/connect to open HP Smart Setup.

    2. On the HP Smart Setup page, click one of the following options:

      • Sign In: If you already created an HP account in the past, choose this option and then enter the email address and password that you used when you created the account.

        NOTE:

        If you have forgotten your HP account username or password, click Forgot your username or password? for help to retrieve this information.

      • Create Account: If you do not have an HP account, choose this option and then enter the required information (first and last name, email address, country/region), create a password for the account, and then click Create Account again.

        A verification code will be sent to the email address that you entered to create the HP account.

        Enter the verification code (that you received via email) in the field that displays on the setup page, and then click Verify. Once your account is verified, click Continue.

    3. When prompted, select an account type (company-managed or personal) for the printer and click Continue.

      NOTE:

      If you choose the company-managed account type, you will be prompted to assign a printer owner (organization or company name).

    4. Follow the onscreen prompts to choose your desired options for HP data collection and firmware updates.

    5. When prompted for the pairing code, enter the pairing code that you retrieved in the previous step (Step 6), and then click Continue.

      A message will display when the pairing code has been accepted.

    6. When prompted, give your printer a name and location and click Continue, or if you do not want to add these details, click Skip.

    7. When the Instant Ink offer page displays, choose one of the following options:

      • To sign up for an Instant Ink subscription, click Continue and follow the onscreen instructions to complete the sign-up process.

      • To skip the Instant Ink offer and sign up at a later time, click Not Right Now.

    8. On the "Finish printer setup" page, click Set Up next to the "Set up print and send a test page" option.

    9. When the "Set up print and send a test page" dialog displays, click Install next to the "To enable printing, install a print driver" option to download the print driver.

      After the driver has downloaded, click the .exe file to start the printer driver installation.

    10. Once the driver installation is complete, click Print next to "Print a test page" to ensure the printer is set up and ready to print. Then click Done to close the "Set up print and send a test page" dialog.

    11. To set up scan destinations and/or the printer fax, click Set Up next those options.

    12. At the bottom of the "Finish printer setup" screen, click Go to HP Smart Admin to open the HP Smart Admin Dashboard.

      Use the HP Smart Admin Dashboard for the following tasks:

      • Manage the printer

      • Monitor print usage

      • Monitor your HP Instant Ink plan and usage (if applicable)

      • Invite users and additional administrators

      • Enroll in other printing solutions to make printing more efficient

      • Manage account settings

      NOTE:

      HP recommends bookmarking the HP Smart Admin Dashboard (hpsmart.com/admin) so you can easily access it again to manage your printer.

Get help with setup

For additional setup information and videos, visit the link below.

hp.com/support/printer-setup

Help and tips for Wi-Fi and connectivity

If the HP Easy Start software is unable to find your printer during setup, check the following conditions to resolve the issue.

TIPS FOR RESOLVING WI-FI CONNECTIVITY ISSUES

Potential issue

Solution

Printer Wi-Fi setup mode timed out

If the Wi-Fi light on the control panel is not blinking blue, the printer might not be in Wi-Fi setup mode.

Use one of the following solutions to restart Wi-Fi mode:

  • Solution one: Turn the printer off and then back on.

  • Solution two: Follow these steps to restore network settings:

    1. On the control panel, select Setup > Network Setup > Restore Network Settings.

      The wireless light will begin blinking.

    2. Wait for one minute. Open the printer software and try connecting again.

Computer too far from printer

Move your computer closer to the printer. Your computer might be out of range of the printer's Wi-Fi signal.

Computer connected to a Virtual Private Network (VPN) or remote work network

Disconnect from a VPN before installing HP printer software.

Connect to the VPN again after finishing printer setup.

NOTE:

Consider your location and the security of the Wi-Fi network before disconnecting from a VPN.

Wi-Fi turned off on computer (computer connected by Ethernet)

If your computer is connected by Ethernet, turn on the computer's Wi-Fi while setting up the printer.

Access the HP Embedded Web Server (EWS)

For information on how to access the printer settings in the HP Embedded Web Server (EWS) using the factory-set credentials for HP LaserJet Pro printers, refer to the following document:

HP LaserJet Pro - Use a PIN to access the HP Embedded Web Server printer settings

Printer features

Review the components on the front and rear of the printer, including the buttons and features on the touchscreen control panel.

Front and back views

FRONT FEATURES

FRONT FEATURES

Number

Description

1

Output tray extender

2

Automatic document feeder

3

Access toner cartridge

4

Power button

5

Tray 2

6

Tray 1/Toner access door

REAR FEATURES

REAR FEATURES

Number

Description

7

Rear door

8

USB port for job storage

NOTE:

This USB port is hidden behind a cover. Remove the cover to access the port.

9

USB port for computer connection

10

Ethernet port

11

Fax port: Telephone line out (Fax models only)

12

Fax port: Fax line in (Fax models only)

13

Power connection

Control panel view

Identify the buttons and features on the touchscreen control panel.

NOTE:

The features that appear on the Home screen can vary, depending on the printer configuration.

CONTROL PANEL VIEW

CONTROL PANEL FEATURES

Number

Item

Description

1

Back button

Returns to the previous screen

2

Home screen Dashboard display icons

See the table that follows for a description of the icons.

Pull down this tab to open the Jobs menu.

3

Color touchscreen

Provides access to menus, help animations, and printer information

4

Help button

Provides access to the control panel help system

5

Home button

Provides access to the Home screen

6

Copy icon: Touch this icon to open the Copy menu.

7

Scan icon: Touch this icon to open the Scan menus:

  • Scan to USB Drive

  • Scan to Network Folder

  • Scan to E-mail

  • Scan to Computer

  • Scan to SharePoint

8

Print icon: Touch this icon to open the Print menu.

9

Fax icon (fax models only): Touch this icon to open the Fax menu.

10

Apps icon: Touch this icon to open the Apps menu to print directly from select Web applications.
HOME SCREEN DASHBOARD DISPLAY ICONS

Icon

Purpose

Sign-in icon: Sign-in to the printer

Setup icon: Opens the Setup menu, where you can change preferences and perform maintenance functions.

Wireless icon (wireless models only): Opens the Wireless Summary menu, where you can check wireless status and change wireless settings. You can also print a wireless test report, which helps diagnose network connection issues.

Wi-Fi Direct icon (wireless models only): Opens the Wi-Fi Direct menu, where you can turn on Wi-Fi Direct, turn off Wi-Fi Direct, and display the Wi-Fi Direct name and password.

Cartridge icon: Opens the Cartridge Information screen, where you can view the estimated level and pages remaining for the toner cartridge.

Paper Setup icon: Opens the Paper Setup menu, where you can configure the default Paper Size and Paper Type for the paper trays.

Fax Status icon (fax models only): Displays status information for the Auto Answer function, fax logs, and the fax sound volume.

ECO icon: Allows you to configure some of the printer environmental features.

https://support.hp.com/

Comments

Post a Comment

Popular posts from this blog

HP LaserJet Pro MFP 4101, HP LaserJet, HP OfficeJet Enterprise, HP PageWide Enterprise, HP Managed - Unable to find network printer in Windows after changing the network from private to public

HP LaserJet Pro MFP 4101, HP LaserJet, HP OfficeJet Enterprise, HP PageWide Enterprise, HP Managed - Unable to find network printer in Windows after changing the network from private to public After changing the network connection on a laptop or tablet (running Windows 8 or later versions) from  Private  to  Public , and then back to a  Private  network, one or more of the following issues arise: Unable to print. The printer is offline. Printer icon status shows "Offline". File and printer sharing is disabled. Unable to find printers or other devices on the network. Cause When changing the network connection on a laptop or tablet to a  Public  network, the  Network discovery  and  File and printer sharing  settings are automatically turned OFF, and auto-discovery of printers (and other devices) on the network fails. When the laptop or tablet is reconnected to a  Private  network, these settings d...
Read more

HP LaserJet Pro MFP 4101 - Set up HP Wi-Fi Direct printing

HP LaserJet Pro MFP 4101 - Set up HP Wi-Fi Direct printing Learn how to connect your HP LaserJet Pro printer to Wi-Fi Direct and then print directly to the printer from your mobile device or laptop. If your HP LaserJet Pro printer is a wireless model, you can use the printer's Wi-Fi Direct feature to connect and print directly to the printer from your mobile device or laptop. Connection to an established wireless network or the Internet is not required. NOTE: If you have a wireless printer model that was released between late 2011 and mid-2014, it might use the  HP Wireless Direct  feature, instead of the Wi-Fi Direct feature. To learn how to turn on HP Wireless Direct and connect your mobile device to the printer, go to HP Mobile Printing. Use Wi-Fi Direct to print wirelessly from the following devices: iPhone, iPad, or iPod touch using Apple AirPrint or the HP Smart app Android mobile devices using the HP Print Service plug-in or HP Smart app Windows and...
Read more
