HP LaserJet Pro MFP 4101-4104 - Printer specifications

HP LaserJet Pro MFP 4101-4104 - Printer specifications

Determine the specifications for your printer model.

Technical specifications

Find your printer model in the list below and click it to expand that section and view the technical specifications.

4101 and 4102 models

Review the technical specifications for the printer.

Product numbers for each model

  • 4101dw - 2Z620F

  • 4101fdn - 2Z618F

  • 4101fdw - 2Z619F

  • 4102dw - 2Z622F

  • 4102fdn - 2Z623F

  • 4102fdw - 2Z624F

PAPER HANDLING SPECIFICATIONS

Paper handling features

4101dw

4102dw

4101fdn

4102fdn

4101fdw

4102fdw

Tray 1 (100-sheet capacity)

Tray 2 (250-sheet capacity)

Optional 550-sheet accessory tray

Optional

Optional

Optional

Automatic duplex printing
CONNECTIVITY SPECIFICATIONS

Connectivity features

4101dw

4102dw

4101fdn

4102fdn

4101fdw

4102fdw

10/100/1000 Ethernet LAN connection with IPv4 and IPv6

Hi-Speed USB 2.0

Walk-up USB port

Print server for wireless connectivity

Not available

Bluetooth Low Energy (BLE)

Not available

Wi-Fi Direct for printing from mobile devices

Not available
PRINT SPECIFICATIONS

Print features

4101dw

4102dw

4101fdn

4102fdn

4101fdw

4102fdw

Prints 40 pages per minute (ppm) on A4 and 42 ppm on letter-size paper

Job storage and private printing
COPY AND SCAN SPECIFICATIONS

Copy and scan features

4101dw

4102dw

4101fdn

4102fdn

4101fdw

4102fdw

Copies and scans up to 32 pages per minute (ppm)

50-page document feeder with dual-head scanning for single-pass duplex copying and scanning

Scan to E-mail, Scan to USB, and Scan to Network Folder options
OTHER SPECIFICATIONS

Other features

4101dw

4102dw

4101fdn

4102fdn

4101fdw

4102fdw

Color touchscreen control panel

512MB standard/maximum memory

Fax features

Not available

4103 models

Review the technical specifications for the printer.

Product numbers for each model

  • 4103dw - 2Z627A, 2Z635A

  • 4103fdn - 2Z628A, 2Z636A

  • 4103fdw - 2Z629A

PAPER HANDLING SPECIFICATIONS

Paper handling features

4103dw

4103fdn

4103fdw

Tray 1 (100-sheet capacity)

Tray 2 (250-sheet capacity)

Optional 550-sheet accessory tray

Optional

Optional

Optional

Automatic duplex printing
CONNECTIVITY SPECIFICATIONS

Connectivity features

4103dw

4103fdn

4103fdw

10/100/1000 Ethernet LAN connection with IPv4 and IPv6

Hi-Speed USB 2.0

Walk-up USB port

Print server for wireless connectivity

Not available

Bluetooth Low Energy (BLE)

Not available

Wi-Fi Direct for printing from mobile devices

Not available
PRINT SPECIFICATIONS

Print features

4103dw

4103fdn

4103fdw

Prints 40 pages per minute (ppm) on A4 and 42 ppm on letter-size paper

Job storage and private printing
COPY AND SCAN SPECIFICATIONS

Copy and scan features

4103dw

4103fdn

4103fdw

Copies and scans up to 32 pages per minute (ppm)

50-page document feeder with dual-head scanning for single-pass duplex copying and scanning

Scan to E-mail, Scan to USB, and Scan to Network Folder options
OTHER SPECIFICATIONS

Other features

4103dw

4103fdn

4103fdw

Color touchscreen control panel

512MB standard/maximum memory

Fax features

Not available

4104 models

Review the technical specifications for the printer.

Product numbers for each model

  • 4104dw - 2Z632A

  • 4104fdn - 2Z633A

  • 4104fdw - 2Z634A

PAPER HANDLING SPECIFICATIONS

Paper handling features

4104dw

4104fdn

4104fdw

Tray 1 (100-sheet capacity)

Tray 2 (250-sheet capacity)

Optional 550-sheet accessory tray

Optional

Optional

Optional

Automatic duplex printing
CONNECTIVITY SPECIFICATIONS

Connectivity features

4104dw

4104fdn

4104fdw

10/100/1000 Ethernet LAN connection with IPv4 and IPv6

Hi-Speed USB 2.0

Walk-up USB port

Print server for wireless connectivity

Not available

Bluetooth Low Energy (BLE)

Not available

Wi-Fi Direct for printing from mobile devices

Not available
PRINT SPECIFICATIONS

Print features

4104dw

4104fdn

4104fdw

Prints 40 pages per minute (ppm) on A4 and 42 ppm on letter-size paper

Job storage and private printing
COPY AND SCAN SPECIFICATIONS

Copy and scan features

4104dw

4104fdn

4104fdw

Copies and scans up to 32 pages per minute (ppm)

50-page document feeder with dual-head scanning for single-pass duplex copying and scanning

Scan to E-mail, Scan to USB, and Scan to Network Folder options
OTHER SPECIFICATIONS

Other features

4104dw

4104fdn

4104fdw

Color touchscreen control panel

512MB standard/maximum memory

Fax features

Not available

Supported operating systems

The following information applies to the printer-specific Windows and HP print drivers for macOS and to the software installer.

Windows and macOS: Windows and Mac computers and Android and Apple mobile devices are supported with this printer.

  1. Go to support.hp.com.

  2. Enter the printer name to get the printer drivers, create an HP account, register the printer, and connect.

Linux: For information and print drivers for Linux, go to developers.hp.com/hp-linux-imaging-and-printing.

UNIX: For information and print drivers for UNIX, go to www.hp.com/go/unixmodelscripts.

Citrix Ready Kit Certification - Up to Citrix Server 7.18: For more information, go to citrixready.citrix.com.

SUPPORTED OPERATING SYSTEMS AND PRINT DRIVERS

Operating system

Print driver installed (from the software on the web)

Windows 11, 10, 7 (32-bit and 64-bit)

The HP PCL-6 printer-specific print driver is installed for this operating system as part of the software installation.

Citrix Server 6.5

The HP PCL 6 printer-specific print driver is available for download from the printer support website. Download the driver, and then use the Microsoft Add Printer tool to install it.

Citrix XenApp & XenDesktop 7.6

The HP PCL 6 printer-specific print driver is available for download from the printer support website. Download the driver, and then use the Microsoft Add Printer tool to install it.

Novell iPrint server

The HP PCL 6 printer-specific print driver is available for download from the printer support website. Download the driver, and then use the Microsoft Add Printer tool to install it.

macOS v12 (Monterey), macOS v11 (Big Sur), macOS v10.15 (Catalina)

To install the print driver, download the software from 123.hp.com. Follow the steps provided to install the printer software and print driver.
NOTE:

For a current list of supported operating systems, go to www.hp.com/support/ljmfp4101-4104 for HP's all-inclusive help for the printer.

NOTE:

For details on client and server operating systems and for HP Smart UPD driver support for this printer, go to support.hp.com.

MINIMUM SYSTEM REQUIREMENTS

Windows 11, 10, 7

macOS v12 (Monterey), macOS v11 (Big Sur), macOS v10.15 (Catalina)

Mobile devices, iOS, Android

  • 32-bit or 64-bit

  • 2 GB hard drive

  • Internet connection

  • USB port

  • 2 GB hard drive

  • Internet connection

Router connection not required

www.hp.com/go/mobileprinting

Mobile printing solutions

HP offers multiple mobile printing solutions to enable easy printing to an HP printer from a laptop, tablet, smartphone, or other mobile device.

To see the full list and to determine the best choice, go to www.hp.com/go/MobilePrinting.

NOTE:

Update the printer firmware to ensure all mobile printing capabilities are supported.

  • Wi-Fi Direct on wireless models

  • AirPrint

  • Android Printing

  • HP Smart app

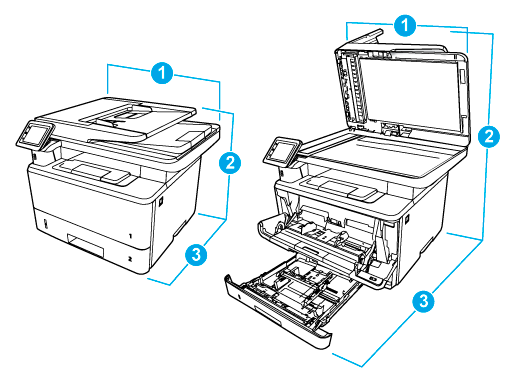

Printer dimensions

Make sure your printer environment is large enough to accommodate the printer.

DIMENSIONS FOR THE PRINTER

Measurement

Printer fully closed

Printer fully opened

1. Width

420 mm 16.5 in

453 mm 17.8 in

2. Height

323 mm 12.7 in

577 mm 22.7 in

3. Depth

390 mm 15.3 in

839 mm 33 in

Weight (with cartridges)

12.9 kg 28.4 lb

12.9 kg 28.4 lb

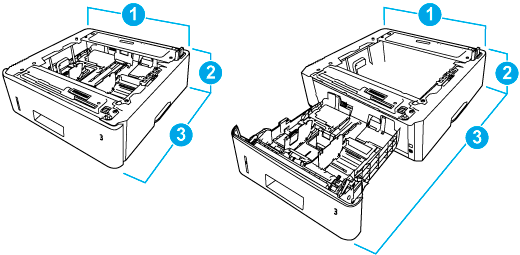

DIMENSIONS FOR THE OPTIONAL 550-SHEET TRAY

Measurement

Tray fully closed

Tray fully open

1. Width

381 mm 15 in

381 mm 15 in

2. Height

131 mm 5.1 in

131 mm 5.1 in

3. Depth

357 mm 14 in

781 mm 30.8 in

Weight

3.7 kg 8.2 lb

3.7 kg 8.2 lb

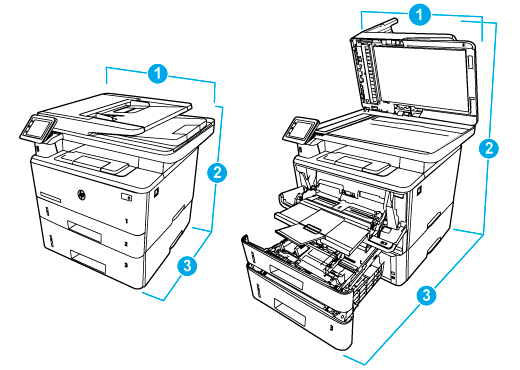

DIMENSIONS FOR THE PRINTER WITH THE OPTIONAL 550-SHEET TRAY

Measurement

Printer fully closed

Printer fully opened

1. Width

420 mm 16.5 in

453 mm 17.8 in

2. Height

452 mm 17.8 in

706 mm 27.8 in

3. Depth

390 mm 15.3 in

839 mm 33 in

Weight (with cartridge)

16.6 kg 36.6 lb

16.6 kg 36.6 lb

Power consumption

Review the power consumption for each printer status or function.

POWER CONSUMPTION (AVERAGE, IN WATTS)

Printing

Ready

Sleep

Auto-off

(Enabled at shipment)

Auto-off/Manual-on

Off

510 W

7.5 W

0.9 W

0.9 W

0.06 W

0.06 W

Electrical specifications

Review the electrical specifications for the printer.

NOTE:

Power requirements are based on the country/region where the printer is sold. The values in the following table are subject to change.

CAUTION:

Do not convert operating voltages. This can damage the printer and void the printer warranty.

RECOMMENDED VOLTAGE

Specification

110-volt models

220-volt models
Power requirements (Volts)1

110 to 127 volts (± 10%)

50/60 Hz (± 2 Hz)

220 to 240 volts (± 10%)

50/60 Hz (± 2 Hz)

1 Power reported is highest value measured for all printer models using standard voltages.

Acoustic emissions

Review the acoustic emissions, including sound power level and sound pressure level.

SOUND POWER LEVEL

Acoustics: Sound power level (pages per minute (ppm))

Declared per ISO 9296

Printing (40 ppm)

LwAD = 6.7 Bels(A)

Scanning

LwAD = 6.2 Bels(A)

Ready

Inaudible
SOUND PRESSURE LEVEL

Acoustics: Sound pressure level (pages per minute (ppm))

Declared per ISO 9296

Printing (40 ppm)

LpAm = 54 dB(A)

Scanning

LpAm = 48 dB(A)

Ready

Inaudible

Operating-environment range

To operate properly, the printer must be in an environment that meets certain specifications.

OPERATING-ENVIRONMENT SPECIFICATIONS

Environment

Recommended

Storage

Temperature

15° to 27°C 59° to 80.6°F

10° to 32.5°C 50° to 90.5°F

Relative humidity

30% to 70% relative humidity (RH)

10% to 80% RH

https://support.hp.com/
